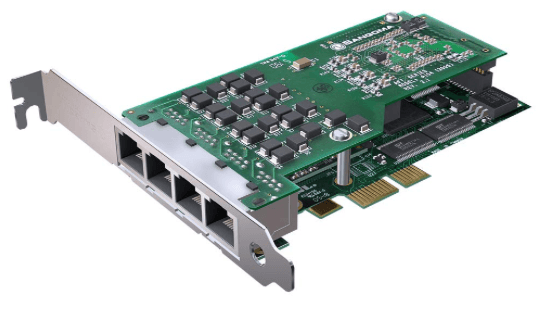

TECS PRI cards are high-performance, cost effective telephony cards available with carrier grade optional hardware echo cancellation. The card allows up to 96 (T1) or 120 (E1) channels and allows integration of legacy telephony systems with emerging Voice-over IP (VoIP) technologies
TECS E1/T1/J1 digital cards are designed to work with Open Source based VoIP platforms such as Asterisk® (e.g. PBX in a Flash®, FreePBX® Elastix®) & FreeSWITCH®. It supports industry standard telephony protocol families. Both line-side, trunk-side interfaces along with advanced call features are supported
- Ease of installation (no patches require for installation)
- Compatible with Linux and Window OS
- Optional Hardware echo cancellation
- Superior voice quality
- Available in PCIe
- 1 year warranty on parts
Applications
- Legacy PBX/IVR Services
- VoIP Services
- Complex IVR Applications
- Conference Bridges
- Calling Card Platforms
- PRI Switch Compatibility: Network or CPE
Product Bundles
| 1- Port | 2- Port | 4- Port |
|---|
| Number of Ports | Single Span E1/T1/J1 Card (PCIe) | Dual Span E1/T1/J1 Card (PCIe) | Quad Span E1/T1/J1 Card (PCIe) |
| Channels /Concurrent Calls | Upto 30 voice calls | Upto 60 voice calls | Upto 120 voice calls |
| Dimension | 126 mm X 56 mm | 140mm X 63 mm | 140mm X 63 mm |
A technical Specification
| Optional Hardware Echo Canceller | Operating Systems |
|---|
| Octasic Based | Linux Kernel : 2.4 to Latest |
| 128 ms Tail per channel | LWindows : XP/Vista/Win7 |
| G.168–2004 Echo Cancellation in Hardware |
| Voice Platforms | Line Coding |
|---|
| Asterisk : 1.4 to Latest | HDB3, AMI, B8ZS |
| FreeSWITCH: > 1.2.7 |
| Line Protocols | Minimum Hardware Requirement |
|---|
| Voice CAS, MRC/R2 | 1.6-GHz Pentium IV |
| PRI, SS7 | 512 MB RAM |
| HDLC / PPP | 3.3V or 5V PCI-e x1 slot |
